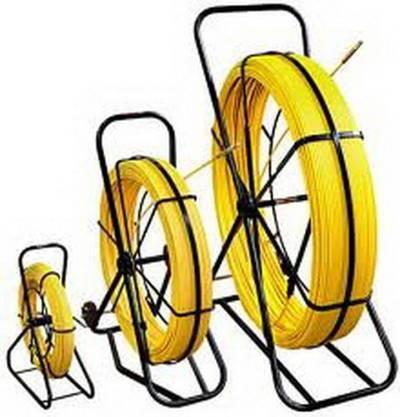

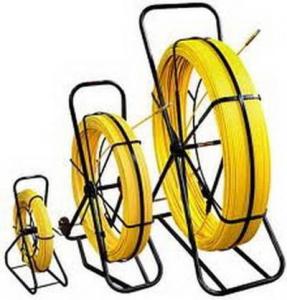

11mm 12mm Diameter Fiberglass Duct Rodder For Electrical Conduit

Brand Name : Hicorpwell

Model Number : HCW-555

Place of Origin : Shenzhen China

MOQ : 1

Payment Terms : T/T, L/C

Supply Ability : 500

Packaging Details : 1200mm X 400mm X 1300mm, Wheel Diameter(mm): 300M

Certification : CCC

Name : Fiberglass Duct Rodder

Diameter : 11mm/12mm

Length : 100M/150M/200M/220M/250M

Wall Thickness Of MetalFrame : 2.2mm

Rod inner : Fiber Glass

Iron Frame : Spray Coating

Brake : Yes

Drawing Head : Copper

Density : 55g/m

Breaking Tension : 100KGS

Bending Radius : 295mm

Inside : Plastic Woven Strip Wind Around the Frame

Outside : Carton

Contact Now

Fiberglass duct rodde,rduct rod,frp duct rodder,duct rodder
Fiberglass duct rodder features&benefits:
1. strong non-conductive fiberglass rod construction
2. fiberglass duct rodderstainless steel drawing head
3. Afor longer conduit runs and underground duct.duct rodder
4. duct rodRugged tubular steel reel with adjustable position.
5. Feed device allows rod to feed out or be wound back onto reel with easy pushi or pull of rod.
6. Duct rods/duct rodders have Many applications, frp duct roddernot only pulling the cable but also pulling.
Glass fiber rod diameter(mm)
φ4.5mm/φ6mm/φ8mm/φ9mm/φ10mm/φ11mm/φ12mm/φ13mm/φ14mm/φ16mm
Length(m)
10m-150m
Color
Yellow/red/black/blue/green/white
Frame(mm)
650 x 250 x 680, 1000 x 470 x 1140, 1230 x 470 x 1350
Material
75-80% E-glass fiber +High density polyethylene(outer)
Feature
Add metal(copper wire, stainless steel wire)in the rod for detectable purpose
Packing
Wrapped and then carton box
1.Fiberglass duct rodderSuitable for tube optical cable installation in power communication industry .
2.Component :fiberglass duct rodder is composed of rodder and small wheel .
There are nylon guide tip and nylon shackle for fiberglass duct rodder with terminal end threaded 12mm .
The standard length of roller guide tip is100m.
3.Feature:duct rodder adopt FRP molding core material .the external cover with special engineering plastics.Smooth and high-strength .
11mm 12mm Diameter Fiberglass Duct Rodder For Electrical Conduit11mm 12mm Diameter Fiberglass Duct Rodder For Electrical Conduit
11mm 12mm Diameter Fiberglass Duct Rodder For Electrical Conduit
